Pillow and Cushion Filling Machine

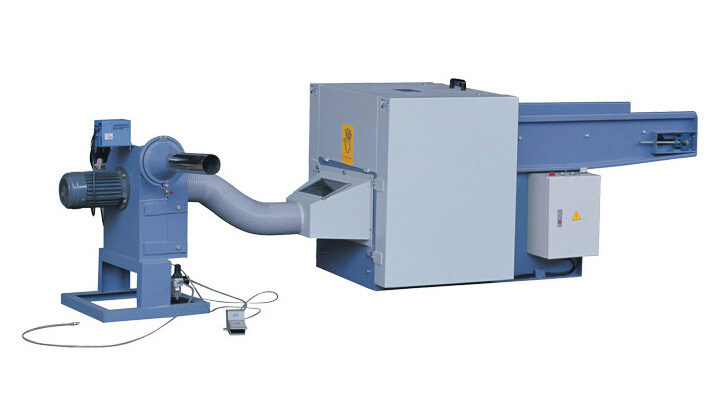

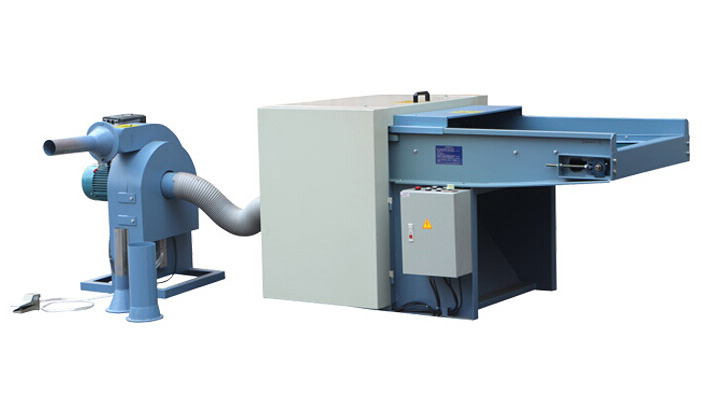

The pillow and cushion filling machine is designed to fill fiber into pillows, backrests, seat cushions, and other fiber stuffed products. It is easy to operate and only requires one or two operators. It supports automatic material feeding and the operator only needs to place the raw materials onto the conveyor belt. The machine has the advantages of material saving comparing to similar products. The pillow or cushions it manufactured are loose, bouncy, and feature an even shape.
Applicable materials: filament fiber, staple fiber, silicon fiber, etc.
Specifications
Model | SZSM360-XCM2.2 | SZSM560-XCM2.2 | SZSM790-XCM4 |
Dimensions | 3500x700x950mm | 3500x880x950mm | 3500x1020x1010mm |
Motor | 4kw+0.75kw+2.2kw | 4kw+0.75kw+2.2kw | 5.5kw+0.75kw+4kw |
Power | 6.95kw | 6.95kw | 10.25kw |
Capacity | 50-80kg/H | 100-150kg/H | 180-230kg/H |
Weight | 520kg | 600kg | 680kg |
Dongguan Shunzhan Machinery Co. was founded in 1992 and specializes in the production of fiber processing machinery. We also provide customers with various solutions for filling pillows, cushions, stuffed toys, and related products.
