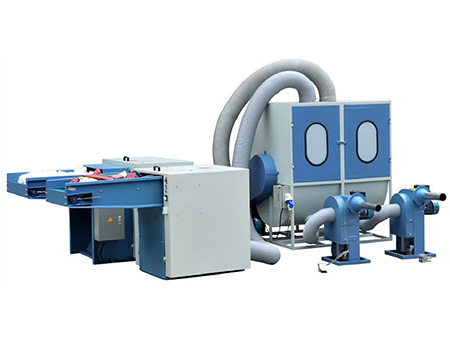

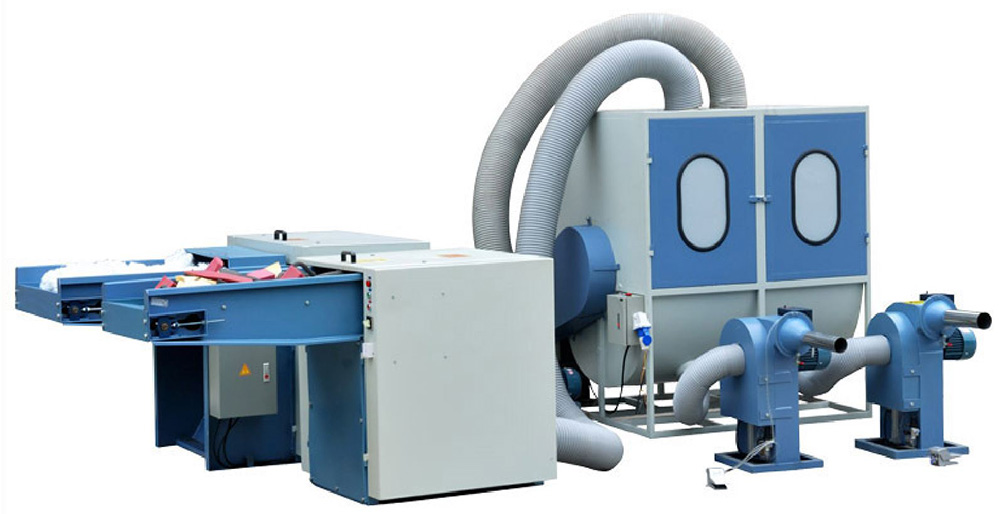

SZ300 Pillow and Cushion Filling Line (Fiber Opening, Foam Shredding, Mixing and Filling)
The pillow and cushion filling line can realize various processes including fiber opening, foam shredding, mixing, and filling. It uses sponge (including offcut), unopened polyester cotton, and down feather as raw materials. It can automatically shred the raw materials and mix them in the designated proportion to stuff them into various products. The filled products feature a flat appearance, good flexibility, and are free of granules.
Applicable products: sofas, seat cushions, etc.
Features
- The pillow and cushion filling line can be used to open the fiber.
- It can be used to fill the fiber.
- It can be used to shred foam.
- It can realize various processes including fiber opening, foam shredding, mixing and filling.
Specifications
| Model | SZHM2-SIIM360-SM710-SL2.2/8-2XCIVf2.2 | |
| Dimensions | 1. Sponge smashing machine | 2500 x 680 x 1100mm |
| 2. Opening machine | 2200 x 1080 x 1070mm | |
| 3. Feeding machine | 750 x 500 x 950mm | |
| 4. Mixing Box | 1400 x 1200 x2200mm | |
| 5. Filling machine | 1000 x800 x800mm | |
| Power | (0.75 x 2)+5.5+4+(2.2 x 3) kw | |
| Capacity | 100-300kg/H | |
| Opening Rate | ≥98% | |
| Weight | 1530kg | |
Dongguan Shunzhan Machinery Co. was founded in 1992 and specializes in the production of fiber processing machinery. We also provide customers with various solutions for filling pillows, cushions, stuffed toys, and related products.
